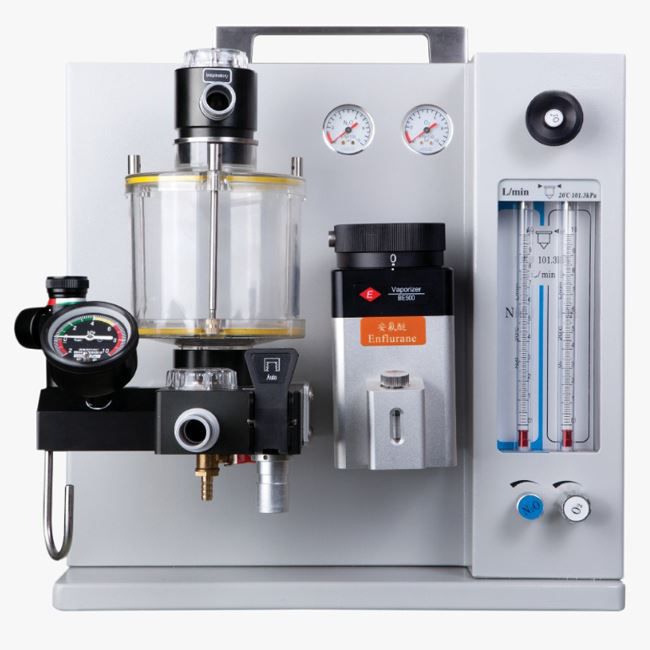

Portable Anesthesia Machine

Specifications of FM801 Portable Anesthesia Machine

*Physical and Environment Specification

-Dimension: L450*W405*H330mm

-Weight: 22kg

-Storage temperature: -22°C ~+55°C

工作温度:+ 10°C ~ + 40°C

-Storage humilidity: <=90°C

*Vaporizer

-Agent type: Sevoflurane; Halothane; Isoflurane

-Flow range: 0.2~15L/min

-Concentration: 0~5% (Sevoflurane 0~8%)

-Working temperature: +15°C ~+35°C

*Main unit

-Mode: Semi-open, semi-closed or closed system

-Gas supply: O2/N2O 0.28Mpa~0.6Mpa

-Flow meter: O2/N2O two-tube flowmeter, 0-10L/min (With interlock protection devices ensuring the oxygen concentration>21%)

-O2 Flush: 25-75L/min

-O2 deficiency alarm: Audible alarm for at least 7 seconds

-APL valve: <=6KPa
